RoadFlowEle6.2.5升级说明

1、修改了移动端邮件连接无法打开的问题。

    修改文件:\RoadFlow.WebUIMobile\pages\index.vue


2、流程步骤增加了子表数据过滤条件设置。

    修改文件:\RoadFlow.WebUIElement\src\roadui-pages\flow\design\step.vue


    多语言版要更新语言包:


    修改文件:\RoadFlow.Model\FlowRunModel\Step.cs

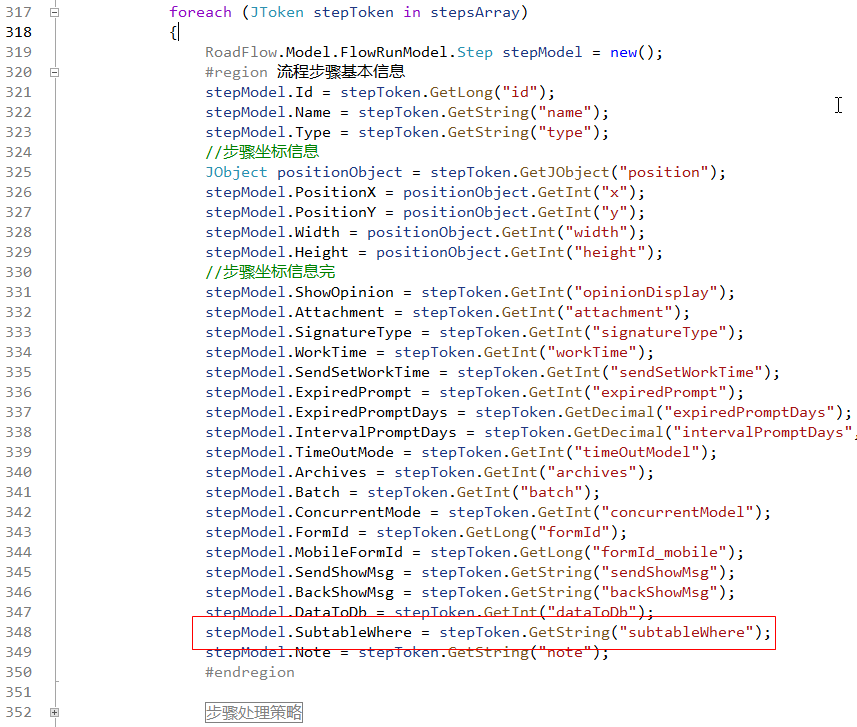

    修改文件:\RoadFlow.Service\Flow.cs


    修改文件:\RoadFlow.Service\Form.cs


   /// <summary>
        /// 得到表单前端显示数据json
        /// </summary>
        /// <param name="formId">表单id(rf_form表id)</param>
        /// <param name="instanceId">实例id,主键值</param>
        /// <param name="subtableWhere">子表过滤条件</param>
        /// <param name="isSelectSubtable">是否只查询子表数据</param>
        /// <returns></returns>
        public static JObject GetFormData(long formId, string instanceId, string? subtableWhere = "", bool isSelectSubtable = false)
        {
            JObject jObject = new();
            if (string.IsNullOrWhiteSpace(instanceId))
            {
                return jObject;
            }
            var formModel = Get(formId);
            if (formModel == null)
            {
                return jObject;
            }

            JObject formAttrJObject = RoadFlow.Utility.Json.ParseObject(formModel.AttrJson);
            if (formAttrJObject.IsNullOrEmpty())
            {
                return jObject;
            }
            long dbConnId = formAttrJObject.GetLong("dbConn");
            JArray fieldsArrayNode = RoadFlow.Utility.Json.ParseArray(formModel.FieldsJson);
            //2023-08-20增加if条件,判断只查询子表数据。
            if (!isSelectSubtable)
            {
                string dbTable = formAttrJObject.GetString("dbTable");
                string dbTablePrimaryKey = formAttrJObject.GetString("dbTablePrimaryKey");//表单字段格式
                if (dbConnId < IdGenerator.MinValue || string.IsNullOrWhiteSpace(dbTable) || string.IsNullOrWhiteSpace(dbTablePrimaryKey))
                {
                    return jObject;
                }
                var formData = RoadFlow.Service.DbConnection.GetDictionary(dbConnId, dbTable, dbTablePrimaryKey, instanceId);
                if (formData == null)
                {
                    return jObject;
                }
                foreach (var kv in formData)
                {
                    string id = (dbTable + "-" + kv.Key).ToLower();
                    var fieldJObject = fieldsArrayNode.GetJObject("id", id);
                    if (fieldJObject.IsNullOrEmpty())
                    {
                        continue;
                    }
                    AddFormFieldValue(jObject, id, kv.Value == null ? string.Empty : kv.Value.ToString(), fieldJObject.GetString("type"), fieldJObject.GetString("format"));
                }
            }

            //子表
            JArray subtableJArray = RoadFlow.Utility.Json.ParseArray(formModel.SubtableJson);
            foreach (var subtableJ in subtableJArray)
            {
                string subtableId = subtableJ.GetString("id");
                string subtableTable = subtableJ.GetString("table");
                string subtablePrimaryKey = subtableJ.GetString("primaryKey");
                string subtableLinkField = subtableJ.GetString("linkField");
                JArray subtableColumns = subtableJ.GetJArray("columns");
                var subtableFieldsArrayNode = fieldsArrayNode.GetJObject("id", subtableId).GetJArray("fields");//子表字段数据类型,格式设置。
                var subtableData = RoadFlow.Service.DbConnection.GetDataTable(dbConnId, subtableTable, subtableLinkField, instanceId, "", RoadFlow.Service.Wildcard.Replace(subtableWhere));
                JArray subtableDataJArray = new();
                foreach (System.Data.DataRow dr in subtableData.Rows)
                {
                    JObject columnJObject = new();
                    columnJObject.Add("key", dr[subtablePrimaryKey].ToString());
                    foreach (var subtableColumn in subtableColumns)
                    {
                        string field = subtableColumn.GetString("field");
                        var subtableFieldJObject = subtableFieldsArrayNode.GetJObject("id", field);
                        if (subtableData.Columns.Contains(field))
                        {
                            AddFormFieldValue(columnJObject, field, dr[field].ToString(), subtableFieldJObject.GetString("type"), subtableFieldJObject.GetString("format"));
                        }
                    }
                    subtableDataJArray.Add(columnJObject);
                }
                jObject.Add(subtableId, subtableDataJArray);
            }
            return jObject;
        }

    修改文件:\RoadFlow.Service\DbConnection.cs


    修改文件:\RoadFlow.Data\DbConnection.cs


3、修改了流程设计步骤名称换行方式。

    修改文件:\RoadFlow.WebUIElement\src\roadui-pages\flow\design\design.vue


    修改文件:\RoadFlow.WebUIElement\src\roadui-pages\flow\run\flow-show.js


    修改文件:\RoadFlow.Service\Flow.cs


4、修改了附件只读显示为图片时可查看大图。

    修改文件:\RoadFlow.WebUIElement\src\roadui-components\el_selectfile.vue


  <span v-for="(file,index) in fileList" :key="file.id+index">
                <span v-if="showImg&&utils.isImageFile(file.name)" @click="showFile(file)" :style="showStyle +';background-image:url('+config.SERVER_WEBADDRESS+'/Files/show?id='+file.id+'&nroadflow-token='+token+');'" class="roadui_file_img_span">
                    <span><el-icon><ZoomIn /></el-icon></span>
                </span>
                <a v-else class="roaduia" href="javascript:;" @click="showFile(file)" :style="showStyle">{{showIndex?++index+'. ':''}}{{file.name}}</a>
            </span>

    修改文件:\RoadFlow.WebUIElement\src\roadui-assets\share.css


    .roadui_file_img_span { display: inline-flex; background-size: cover; background-position: center; }
    .roadui_file_img_span span { display: inline-flex; cursor: pointer; align-items: center; justify-content: center; width: 100%; height: 100%; background-color: rgba(0,0,0,0.3); }
    .roadui_file_img_span span i { color: #fff; font-size: 22px; }
    .roadui_file_img_span span i:hover { color: var(--el-color-primary); }

5、修改了附件查看图片大图时可自动适应窗口大小。

    修改文件:\RoadFlow.WebUIElement\src\roadui-assets\utils.js


  //获取图片大小
    getImageSize(url) {
        return new Promise(function (resolve, reject) {
            let image = new Image();
            image.onload = function () {
                resolve({
                    width: image.width,
                    height: image.height
                });
            };
            image.onerror = function () {
                reject({ width: 0, height: 0 });
            };
            image.src = url;
        });
    },


  //显示文件 openMenu:首页的openMenu方法;file:要显示的文件对象;serverAddress:服务器地址 isMobile:是否是移动端
    showFile(openMenu, file, serverAddress, isMobile) {
        const isInlineFile = this.isInlineFile(file.name);
        const contenTtype = isInlineFile ? 'inline' : 'attachment';
        const url = serverAddress + '/Files/Show?id=' + file.id + '&contenttype=' + contenTtype + '&nroadflow-token=' + this.getToken();
        //如果可以在线预览
        if (isInlineFile) {
            const w = document.body.clientWidth - (isMobile ? 20 : 300);
            const h = document.body.clientHeight - (isMobile ? 160 : 180);
            let t = (document.body.clientHeight - h) / 2 - 30;
            if (t < 10) {
                t = 10;
            }
            //如果是图片,获取图片尺寸来设置窗口大小
            if (this.isImageFile(file.name)) {
                this.getImageSize(url).then((res) => {
                    const w1 = res.width < w ? res.width + 50 : w;
                    const h1 = res.height < h ? res.height : h;
                    openMenu({ id: file.id, url: url, title: file.name, openMode: 1, width: w1 + 'px', height: h1 + 'px', top: t + 'px', isShowFile: true });
                });
            } else {
                openMenu({ id: file.id, url: url, title: file.name, openMode: 1, width: w + 'px', height: h + 'px', top: t + 'px', isShowFile: true });
            }
        } else {
            this.open(url, 300, 200, file.name, false);
        }
    },

6、修改了流程实例管理中跳转时带出步骤设置的处理人。

    修改文件:\RoadFlow.Web\Areas\RoadFlowApi\Controllers\FlowController.cs


  /// <summary>
        /// 得到跳转步骤
        /// </summary>
        /// <returns></returns>
        [HttpPost("InstanceManageGetGotoSteps")]
        [ApiValidate(Url = "/flow/instance/index")]
        public string InstanceManageGetGotoSteps()
        {
            long taskId = Request.FormLong("taskId");
            JArray jArray = new();
            var taskModel = RoadFlow.Service.FlowTask.Get(taskId);
            if (taskModel == null)
            {
                return RoadFlow.Utility.Json.GetResponseJsonString(jArray);
            }
            var flowRunModel = RoadFlow.Service.Flow.GetFlowRunModel(taskModel.FlowId);
            if (flowRunModel == null)
            {
                return RoadFlow.Utility.Json.GetResponseJsonString(jArray);
            }
            var currentStepModel = flowRunModel.Steps.Where(p => p.Id == taskModel.StepId).First();
            var groupTasks = RoadFlow.Service.FlowTask.GetListByGroupId(taskModel.GroupId);
            foreach (var runStepModel in flowRunModel.Steps)
            {
                var handler = RoadFlow.Service.FlowRun.GetStepDefaultHandler(flowRunModel, runStepModel, currentStepModel, taskModel, groupTasks, null, null);
                jArray.Add(new JObject()
                {
                    { "id", runStepModel.Id.ToString() },
                    { "name", runStepModel.Name },
                    { "members", handler.Item1 },
                });
            }
            return RoadFlow.Utility.Json.GetResponseJsonString(jArray);
        }

7、修改了移动端邮件增加返回按钮。

    修改文件:\RoadFlow.WebUIMobile\pages\mail\index.vue


8、修改了移动端显示PDF文件。

    安装pdfjs-dist

    npm install pdfjs-dist@2.11.338

    增加文件:\RoadFlow.WebUIElement\src\roadui-pages\pdf.vue

    修改文件:\RoadFlow.WebUIElement\src\roadui-assets\utils.js


 //显示文件 openMenu:首页的openMenu方法;file:要显示的文件对象;serverAddress:服务器地址 isMobile:是否是移动端
    showFile(openMenu, file, serverAddress, isMobile) {
        const isInlineFile = this.isInlineFile(file.name);
        const contenTtype = isInlineFile ? 'inline' : 'attachment';
        const isminiprogram = this.query('isminiprogram', this.decodeURI(this.getQuery()));
        const url = serverAddress + '/Files/Show?id=' + file.id + '&contenttype=' + contenTtype
            + '&ismobile=' + (isMobile ? '1' : '0') + '&isminiprogram=' + isminiprogram + '&nroadflow-token=' + this.getToken();
        //如果可以在线预览
        if (isInlineFile) {
            const w = document.body.clientWidth - (isMobile ? 20 : 300);
            const h = document.body.clientHeight - (isMobile ? 160 : 180);
            let t = (document.body.clientHeight - h) / 2 - 30;
            if (t < 10) {
                t = 10;
            }
            //如果是图片,获取图片尺寸来设置窗口大小
            if (this.isImageFile(file.name)) {
                this.getImageSize(url).then((res) => {
                    const w1 = res.width < w ? res.width + 50 : w;
                    const h1 = res.height < h ? res.height : h;
                    openMenu({ id: file.id, url: url, title: file.name, openMode: 1, width: w1 + 'px', height: h1 + 'px', top: t + 'px', isShowFile: true });
                });
            } else {
                openMenu({ id: file.id, url: url, title: file.name, openMode: 1, width: w + 'px', height: h + 'px', top: t + 'px', isShowFile: true });
            }
        } else {
            if (isMobile) {
                this.openNew(url);
            } else {
                this.open(url, 300, 200, file.name, false);
            }
        }
    },

    修改文件:\RoadFlow.WebUIElement\src\roadui-pages\index.vue


  <div v-if="dialogIsIframe">
                <!--移动端显示pdf-->
                <span v-if="utils.query('ismobile',dialogFileUrl)==1&&(utils.isPdfFile(dialogTitle)||utils.isOfficeFile(dialogTitle))">
                    <VuePdf :src="dialogFileUrl" :style="`width:100%;height:${dialogHeight};border:0;`"></VuePdf>
                </span>
                <iframe v-else :src="dialogIsShowFile?dialogFileUrl:dialogComponentId" :style="`width:100%;height:${dialogHeight};border:0;`" frameborder="0"></iframe>
            </div>
            <div v-else :style="`width:100%;height:${dialogHeight};overflow:auto;`">
                <component :is="dialogComponentId" :query="dialogComponentQuery"></component>
            </div>

    增加文件:\RoadFlow.WebUIElement\public\roadui-assets\pdf.worker.min.js

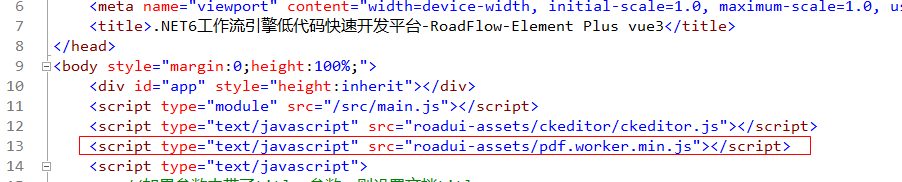

    修改文件:\RoadFlow.WebUIElement\index.html


9、增加了移动端组织架构选择搜索。

    修改文件:\RoadFlow.WebUIElement\src\roadui-components\el-selectorg.vue


  <div v-if="showSearch&&isMobile" v-show="showType==='0'">
                            <el-input size="small" v-model="searchKey" :placeholder="$t(`components.org.search_tip`)" clearable class="roadui_selectorg_searchinput" style="width:60%;"></el-input>
                            <el-button size="small" type="primary" style="vertical-align:middle;" @click="isSearch=true;loadTreeNode({level:0})">{{$t(`components.org.search`)}}</el-button>
                        </div>


  <div v-if="showSearch&&isMobile" v-show="showType==='1'">
                            <el-input size="small" v-model="wgSearchKey" :placeholder="$t(`components.org.search_tip`)" clearable class="roadui_selectorg_searchinput" style="width:60%;"></el-input>
                            <el-button size="small" type="primary" style="vertical-align:middle;" @click="wgIsSearch=true;wgLoadTreeNode({level:0})">{{$t(`components.org.search`)}}</el-button>
                        </div>

10、修改了调查问卷单选多选查看结果前面会显示true|false的问题。

    由于element-plus版本升级引起的,以前的版本不会显示。

    修改文件:\RoadFlow.WebUIElement\src\roadui-pages\system\questionnaire\resultsubject.vue


11、首页设置增加图表显示。


    表rf_home增加字段:


    文件:\RoadFlow.Model\Home.cs实体类增加字段


    修改文件:\RoadFlow.Web\Areas\RoadFlowApi\Controllers\HomeSetController.cs


    修改文件:\RoadFlow.Service\Home.cs


  /// <summary>
        /// 得到一个用户的首页模块
        /// </summary>
        /// <param name="userModel">用户实体</param>
        /// <returns></returns>
        public static JObject GetUserHomeSetJObject(RoadFlow.Model.User? userModel)
        {
            JObject jObject = new();
            if (userModel == null)
            {
                return jObject;
            }
            var homeSetList = GetAll().Where(p => p.UseUserIdList == null || p.UseUserIdList.Contains(userModel.Id)).GroupBy(p => p.Type);
            foreach (var homeSetGrouping in homeSetList)
            {
                JArray typeJArray = new();
                foreach (var homeSetModel in homeSetGrouping)
                {
                    //如果是SQL统计,SQL的值。
                    string? dataSource = homeSetModel.DatasourceType == 0
                        ? homeSetModel.ConnId.HasValue ? RoadFlow.Service.DbConnection.GetFieldValue(homeSetModel.ConnId.Value, RoadFlow.Service.Wildcard.Replace(homeSetModel.Datasource, userModel)) : string.Empty
                        : homeSetModel.Datasource;
                    int isCharts = string.IsNullOrWhiteSpace(homeSetModel.Charts) ? 0 : 1;
                    //如果是图表,则要加载图表数据。
                    JArray chartsData = new();
                    if (isCharts == 1 && homeSetModel.ConnId.HasValue && !string.IsNullOrWhiteSpace(homeSetModel.Datasource))
                    {
                        DataTable dt = RoadFlow.Service.DbConnection.GetDataTable(homeSetModel.ConnId.Value, RoadFlow.Service.Wildcard.Replace(homeSetModel.Datasource, userModel));
                        chartsData = JArray.FromObject(dt);
                    }
                    typeJArray.Add(new JObject()
                    {
                        { "id", homeSetModel.Id.ToString() },
                        { "type", homeSetGrouping.Key },
                        { "title", homeSetModel.Title },
                        { "title_en", string.IsNullOrWhiteSpace(homeSetModel.Title_EN) ? homeSetModel.Title : homeSetModel.Title_EN },
                        { "title_tw", string.IsNullOrWhiteSpace(homeSetModel.Title_TW) ? homeSetModel.Title : homeSetModel.Title_TW },
                        { "dataSource", dataSource },
                        { "linkUrl", homeSetModel.LinkUrl },
                        { "icon", homeSetModel.Icon },
                        { "background", homeSetModel.Background },
                        { "isCharts", isCharts },
                        { "charts", isCharts == 1 ? RoadFlow.Utility.Json.ParseObject(homeSetModel.Charts) : new JObject() },
                        { "chartsData", chartsData },
                        { "chartsHeight", homeSetModel.ChartsHeight.HasValue ? homeSetModel.ChartsHeight : 0 },
                        { "chartsScripts", homeSetModel.ChartsScripts },
                        { "sort", homeSetModel.Sort },
                    });
                }
                jObject.Add("type_" + homeSetGrouping.Key.ToString(), typeJArray);
            }
            return jObject;
        }

    修改文件:\RoadFlow.WebUIElement\src\roadui-pages\home.vue



  //加载图表
    const loadCharts = (c) => {
        const componentId_chart = 'roadflow_home_chart_' + utils.createGuid(false);
        const component_chart = {
            data() {
                return {
                    width: '100%',
                    height: 300,
                    option: {},
                    rows: [],
                    data: [],
                };
            },
            mounted() {
                this.$nextTick(() => {
                    setTimeout(() => {
                        this.loadChart();
                    }, 100);
                });
            },
            methods: {
                //渲染chart
                loadChart() {
                    var programChart = echarts.init(document.getElementById('programChartRef_' + c.id), '');
                    this.option = c.charts;
                    this.rows = c.chartsData;
                    this.data = c.chartsData;
                    this.height = c.chartsHeight || 300;
                    //执行数据替换脚本
                    if (utils.length(c.chartsScripts) > 0) {
                        eval(c.chartsScripts);
                    }
                    programChart.setOption(this.option);
                }
            },
            template: `<div id="programChartRef_${c.id}" ref="programChartRef_${c.id}" :style="'width:'+width+'px;height:'+height+'px'"></div>`,
        };
        app.component(componentId_chart, component_chart);
        c['componentId'] = componentId_chart;
    };

    修改文件:\RoadFlow.WebUIElement\src\roadui-pages\system\homeset\index.vue



12、用户增加了工号,身份证号字段。

    表rf_user_info增加字段:


    实体类增加:\RoadFlow.Model\UserInfo.cs


    修改文件:\RoadFlow.Web\Areas\RoadFlowApi\Controllers\UserController.cs




    修改文件:\RoadFlow.WebUIElement\src\roadui-pages\system\organize\user.vue



联系QQ:493501010电话:136 0832 5512(微信同号)邮箱:road@roadflow.net
Copyright 2014 - 2024 重庆天知软件技术有限公司 版权所有
